Service Details

Service details connect the network and API views of a service. You can start from a service in Network Map or from API Radar and follow the available links to its related activity.

Start from Network

Open Service Monitoring → Network → Map or Services, then select the service. Review its deployment and connection context before following links to related API activity.

See Services View and Tabular Views for the network details panels.

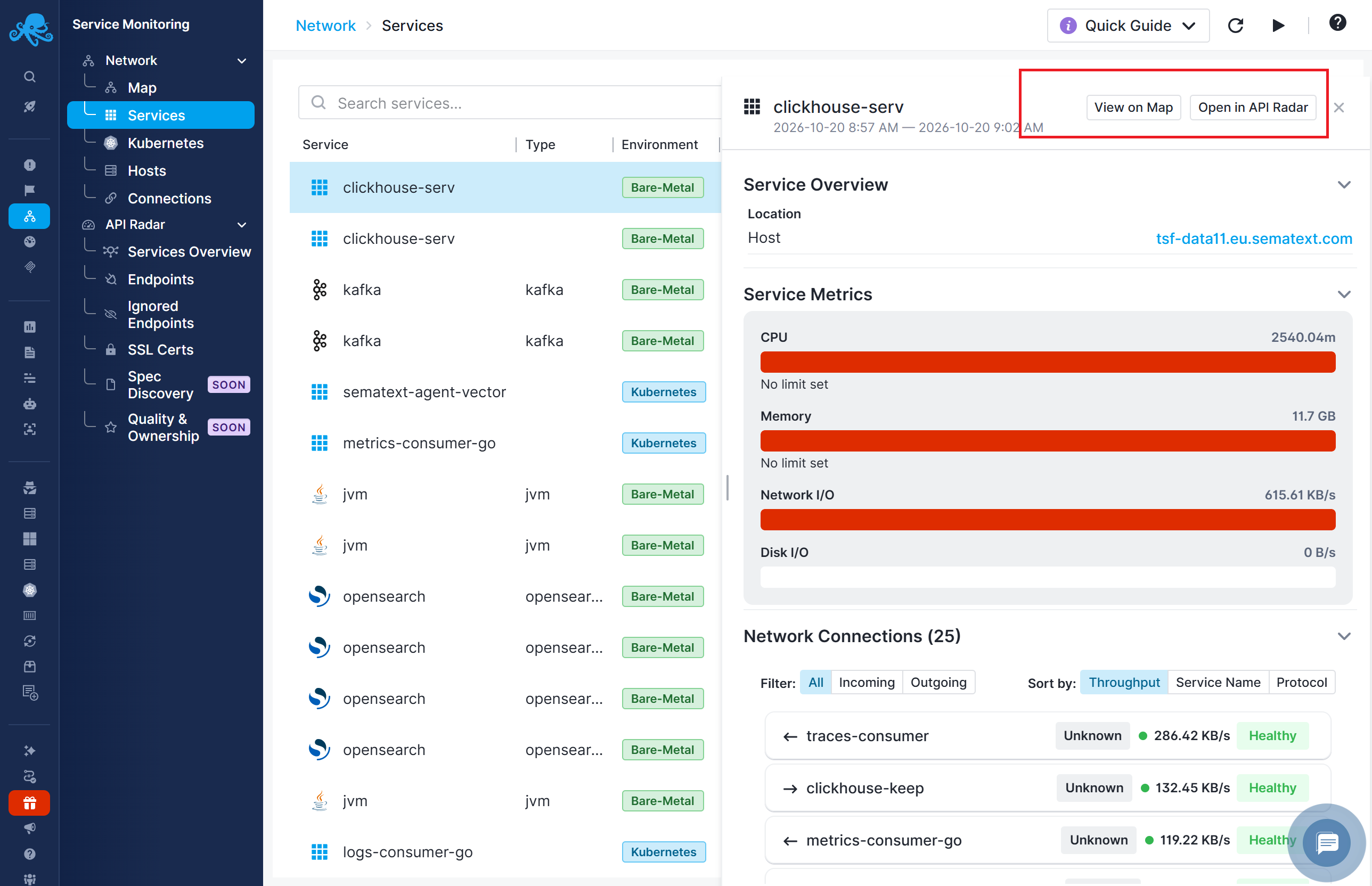

Service details with View on Map and Open in API Radar actions

Start from API Radar

Open Service Monitoring → API Radar → Services Overview or Endpoints. Find the service and inspect its endpoints. Endpoint details provide request metrics and an Open in Network Map action for investigating the associated network context.

An endpoint details panel describes a particular method and path. A service details panel describes the service itself. Use the former to investigate an API operation and the latter to investigate the service and its dependencies.

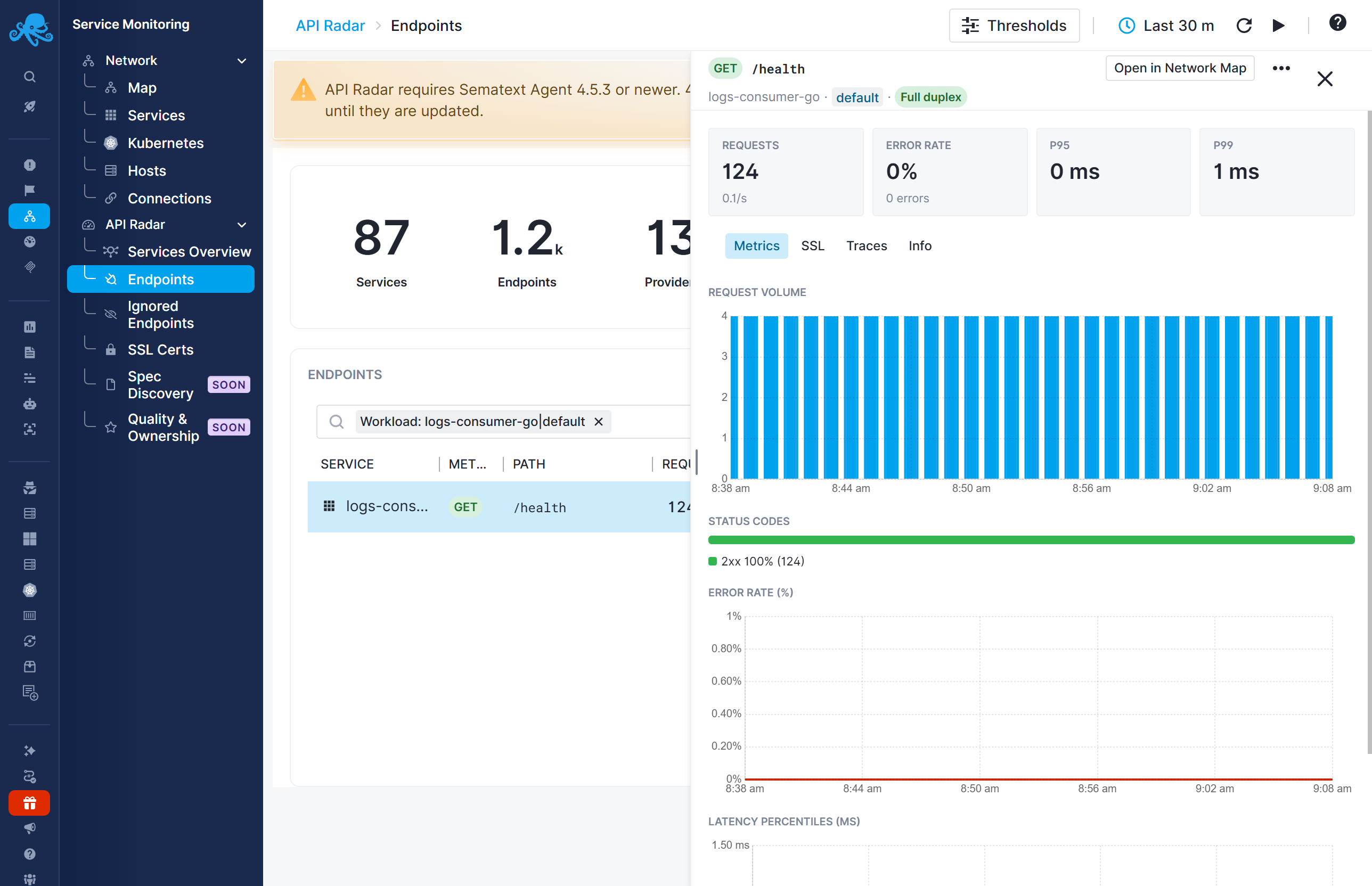

API Radar endpoint details with Open in Network Map

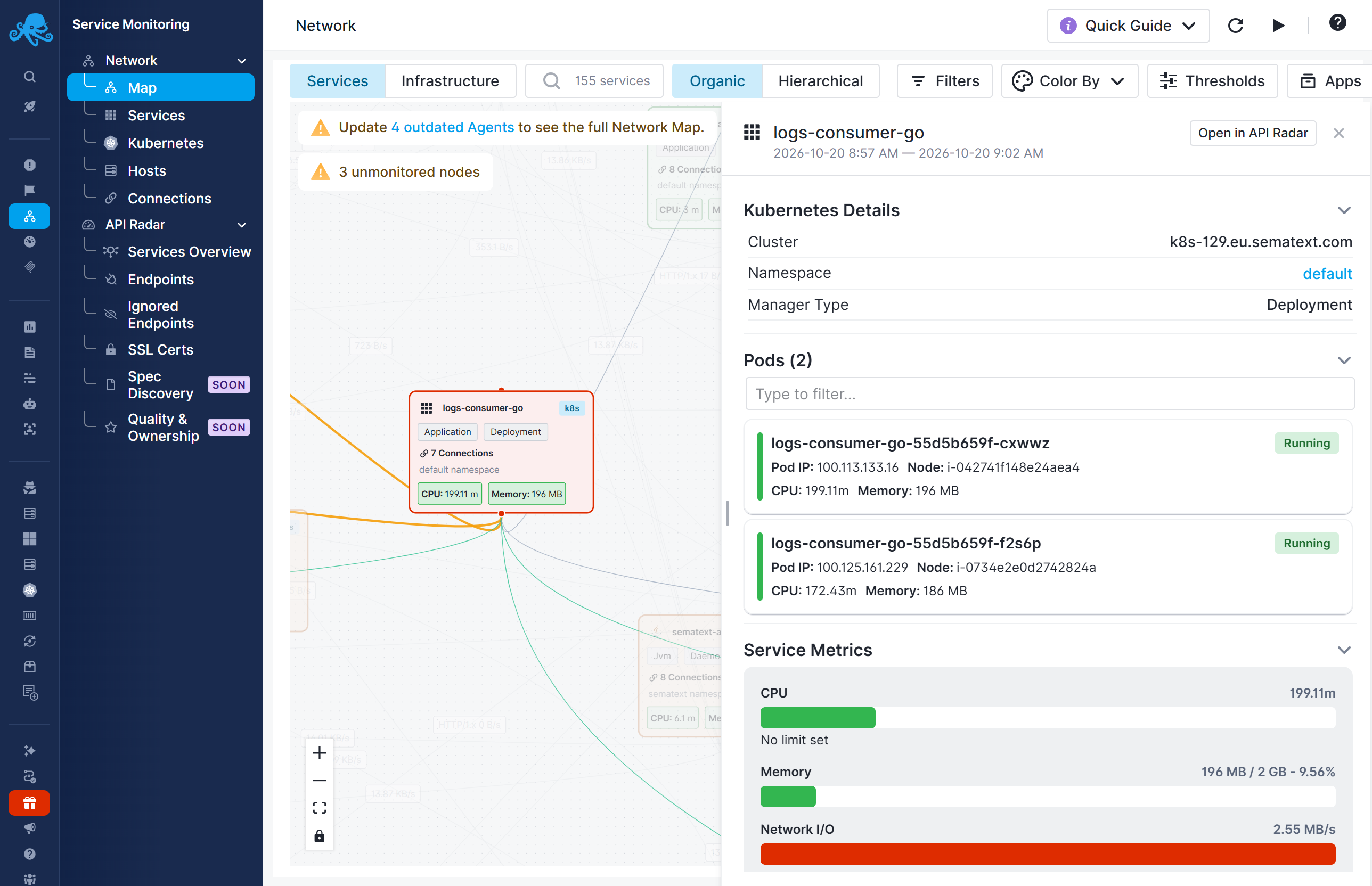

Network Map service details with Open in API Radar

Assess the potential blast radius

A slow or failing service can affect the services that depend on it. The potential blast radius is the set of services and workflows that could be affected, directly or through a chain of dependencies.

For example, API Radar may show elevated latency on a payment endpoint. Open Network Map from the endpoint details to investigate:

  1. Identify services with connections to the payment service, such as checkout or subscription processing. These callers may be affected by its slowdown.
  2. Follow the dependency chain to identify other services that could be affected.
  3. Check those services for corresponding errors or delays to distinguish potential impact from observed problems.

Use the service details panel's Network Connections section to inspect incoming connections. See Services View for how to identify callers and connection direction.

Investigate inside the application. For deeper analysis, instrument the affected service with OpenTelemetry and send its traces to Sematext. Follow individual requests through the application to identify operations contributing to errors or delays.

Start with automatically discovered API and network data, then add tracing to the services that need deeper investigation.
